Heavy Duty BrakeSafe Brake Tester – DVSA Approved
£1,700.00

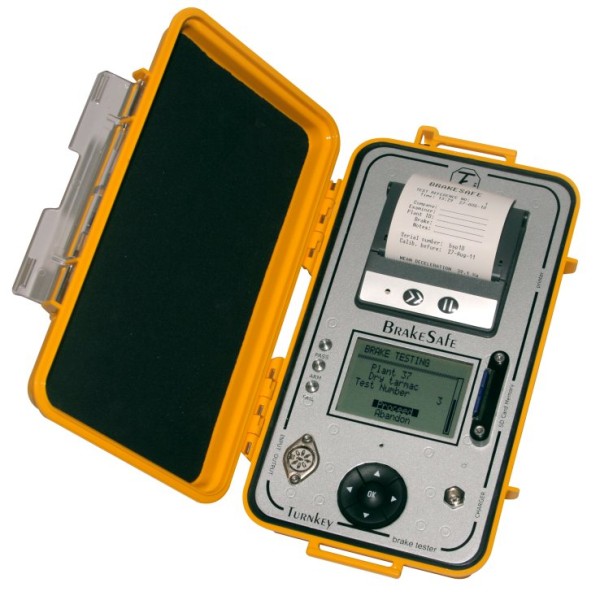

BrakeSafe Portable Brake Tester with Built-In Printer
The Turnkey BrakeSafe is a DVSA-approved portable brake tester designed for use across cars, HGVs and PSVs. With a built-in printer and intuitive operation, it delivers accurate, compliant brake efficiency testing wherever your fleet operates — no workshop required.
Developed in collaboration with the DVSA to meet the trailer brake testing requirements set out in the Guide to Maintaining Roadworthiness, BrakeSafe has also undergone successful trials with comparisons against roller brake testers, giving operators and test facilities confidence in its accuracy and reliability.
Who Is It For?
BrakeSafe is suitable for:
- UK MOT test centres
- Garages and authorised test facilities worldwide
- Fleet operators requiring in-service performance testing
- Mobile crane operators working under STGO (in line with the CPA’s Mobile Crane Technical Information note on chassis brake testing)
Key Features
- DVSA-approved by the GEA, including for data transfer with the MOT Testing Scheme (MTS)
- Measures and prints Mean Fully Developed Deceleration (MFDD) to meet the latest EU and UN World Forum for Harmonisation of Vehicle Regulations
- Auto-aligns with direction of travel — no manual setup required
- Measures in-line deceleration and sideways pull, providing a useful indicator of braking imbalance
- Bright, sunlight-readable pass and fail warning lights with user-defined thresholds (individual thresholds can be set for each of the four brake types)
- HGV trailer testing mode for determining HGV trailer brake efficiency
- Backlit graphical display for reviewing deceleration, speed and distance vs time graphs without printing
- Acceleration profiling capability — records and graphs vehicle acceleration and time to reach a given speed
- Self-levelling and self-contained — can be positioned anywhere in the vehicle with no connections to the vehicle required for basic operation
Data Management
All test results are automatically annotated with the date, time, vehicle identity, test conditions and brake type. The unit can be pre-loaded with:
- Up to 99 vehicle names
- 70 trailer names
- 16 test conditions
- 4 brake types
- 8 examiner names
Each entry can be edited directly via the instrument’s single-click control. Test data is saved to a 2GB SD memory card and 4MB internal memory, allowing direct transfer to a PC or later retrieval from the card.
Software
Additional PC software is required to view saved data. Compatible with Windows only (not compatible with ChromeOS). Please contact us for more information.
Technical Specification
| Specification | Detail |
| Range | 140%g |
| Accuracy | Better than ±2%g |
| Display | Graphical LCD, 128 x 64 pixels, backlit |
| Memory | 4MB internal + 2GB SD card |
| Battery | 6V NiMH rechargeable, 12-hour operation |
| Size | 230mm x 130mm x 65mm |
| Weight | 1kg |
| Enclosure | IP65 (when closed), karabiner for belt attachment |
Calibration and Compliance
- Multipoint UKAS accredited calibration
- CE marked and RoHS compliant
- 12-month warranty included
- Requires re-calibration every 12 months (details included with unit)
- Equipment Identification Number: EINCBD10863A1019133
Please note: The pass and fail warning lights must not be used as part of the MOT test.
Dispatch notice: This product requires calibration prior to dispatch. Please allow up to 10 working days from the date of order for delivery.
