Vehicle Height Measuring Pole
£87.85
A vehicle height measuring pole is an essential piece of equipment for any professional driver or transport operator working with vehicles where load height varies. Accurate height measurement protects drivers from low bridge strikes, prevents damage to vehicles and loads, and supports safe manoeuvring on sites, in warehouses, and at ferry terminals.
This telescopic aluminium height pole extends to a maximum of 16ft 5″ (4.99m) and collapses to just 127cm (approximately 4ft) when retracted, making it compact enough to store in any cab. At 2.3kg, it is lightweight enough to handle quickly and easily, yet robust enough for regular professional use.
Key specifications:
- Maximum extended height: 16ft 5″ / 4.99m
- Retracted size: 127cm (approx. 4ft) x 10cm (4 inches) wide
- Measures heights up to 5 metres

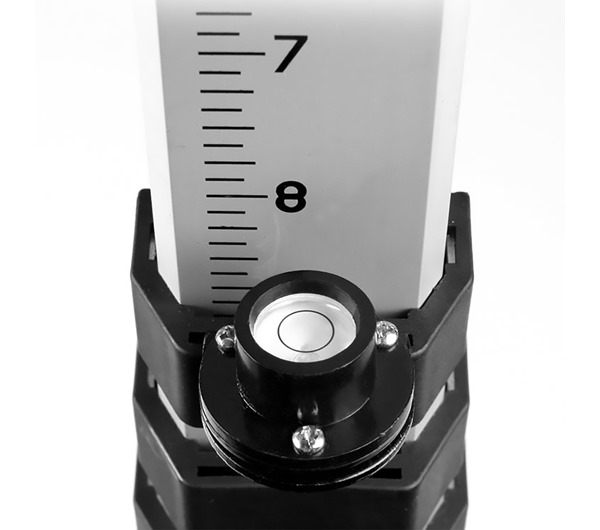

- Metric and imperial graduation
- Tolerance: +/- 0.4mm per metre
- 4 sliding sections for smooth, controlled extension

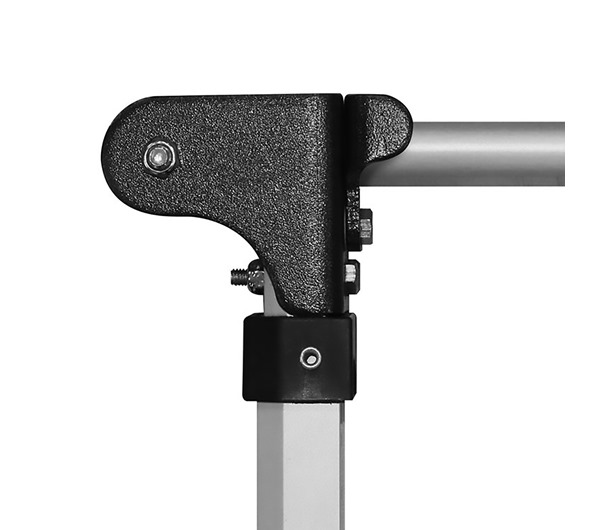

- Right angle fold-out arm for accurate measurement of vehicles, loads, and obstructions
- Safety catch to lock the arm at 90 degrees during measurement
- Foam tip to protect the item being measured
- Rubber base to protect surfaces and prevent slipping
- Manufactured from lightweight aluminium
- Weight: 2.3kg

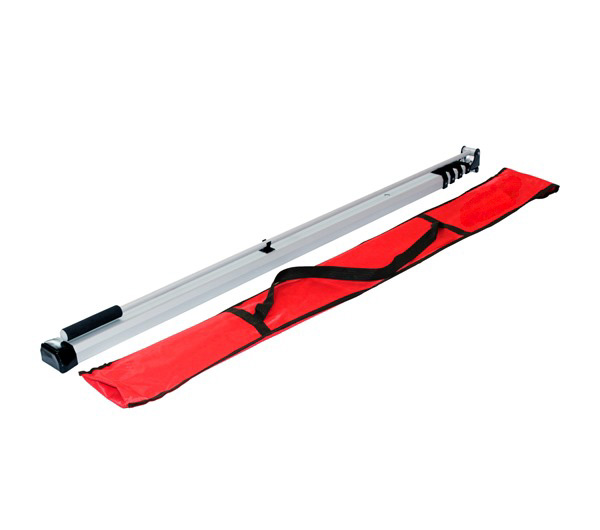

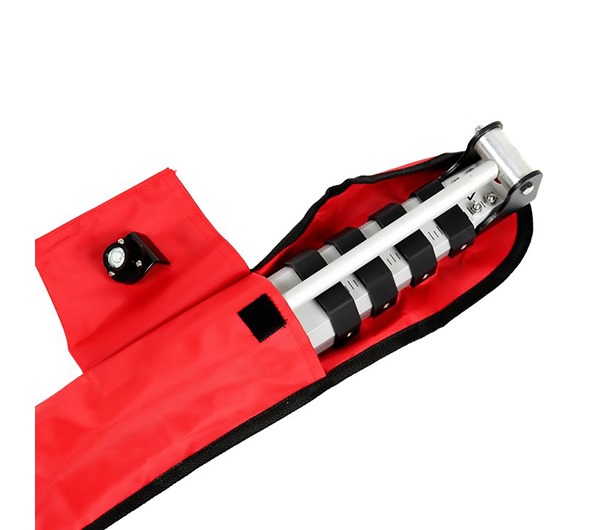

- Supplied with a carry bag and full instructions
Ideal for use with:
- Loaded car transporters
- Plant and agricultural loads
- Recovery and salvage vehicles
- Commercial vehicles and HGVs
- Caravans, motorhomes, and boats
- Ferry loading and unloading
- Height platforms
- Warehouse and site access points
Why carry a vehicle height measuring pole?
Bridge strikes cost the UK haulage industry an estimated £23 million per year in delays and damage. Guessing a vehicle’s height is never worth the risk. A vehicle height measuring pole gives drivers a quick, accurate reading before approaching any low bridge, overhead obstruction, building entrance, or loading bay, removing the guesswork and helping operators demonstrate due diligence.
It can also be used in reverse, to measure doorway heights, overhangs, or overhead branches, before moving a vehicle through or beneath them.
Important safety notice: Always be aware of overhead cables before extending the pole. Do not use near overhead power lines.
Sold and supported by Lloyd Morgan Group, specialists in transport compliance and driver safety. Bridge strike awareness training is also available via our Bridge Strike Prevention Course.
